Type OB Diaphragm

Type OA Diaphragm

General Description

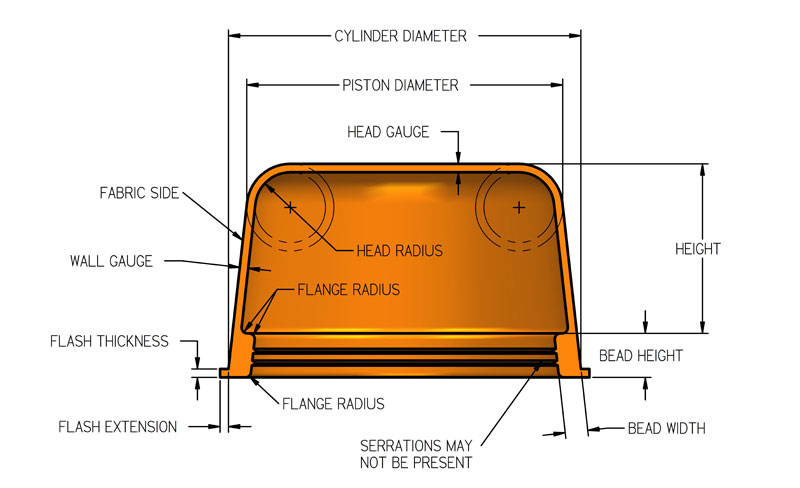

This type of diaphragm has a rectangular bead molded inside the cylinder wall. This design requires the smallest hardware diameter of any diaphragm type. Since clamping and sealing in this style is against the inside wall of the cylinder, the stroke capability is restricted to the lower half of the diaphragm.

  • Type OB Diaphragm
